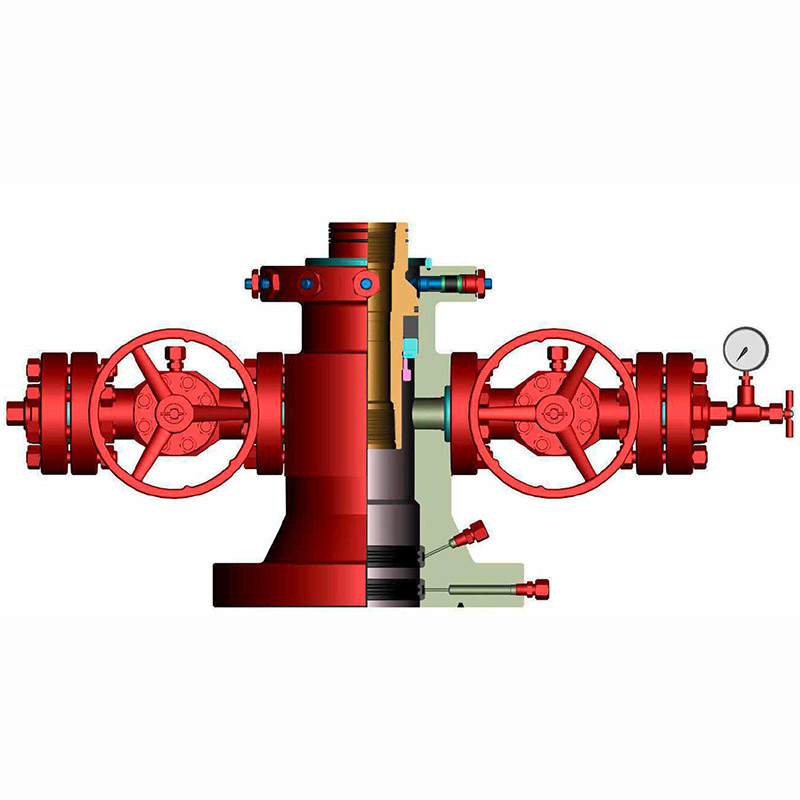

Tubing Head
Description
Tubing head with design of versatile straight-bore, can be installed tubing hanger with different specification
Straight-bore Design
45° shoulder design with high load capacity
Side Outlet Connection Form
Threaded flange side outlet, design with VR plug
Lock Down Screw Assembly
Standardized design lock down screw assembly
Lock wear bushing, tighten tubing hanger
Secondary Seal
Design with secondary seal mechanism at bottom, the casing head shall be installed to
fit the height of sealing device through cutting casing on spot
Tubing Head, Top Flange and Tubing Hanger
Rubber seal or metal-to-metal seal
Tubing Hanger and top flange can be fed through with cable, or penetrated with power mandrel penetrator
Tubing Hanger and top flange may connect multiple joints for control pipeline
Parameters:
|
Bottom Flange |
Top Flange |
A |
B |
C |
||
|
7-1/16” |
5000 |
7-1/16” |
5000 |
600 |
122 |
180 |
|
10000 |
7-1/16” |
10000 |
600 |
122 |
180 |
|
|
10000 |
7-1/16” |
10000 |
600 |
160 |
180 |
|
|
15000 |
7-1/16” |
15000 |
640 |
160 |
180 |
|
|
11” |
2000 |
7-1/16” |
2000 |
500 |
160 |
180 |
|
2000 |
7-1/16” |
3000 |
560 |
122 |
180 |
|
|
3000 |
7-1/16” |
3000 |
560 |
122 |
180 |
|
|
3000 |
7-1/16” |
5000 |
600 |
160 |
180 |
|
|
3000 |
9” |
3000 |
660 |
209 |
220 |
|
|
3000 |
9” |
5000 |
660 |
209 |
220 |
|
|
5000 |
7-1/16” |
5000 |
630 |
160 |
180 |
|
|
5000 |
7-1/16” |
10000 |
635 |
160 |
180 |
|
|
5000 |
9” |
10000 |
790 |
209 |
220 |
|
|
10000 |
7-1/16” |
10000 |
635 |
160 |
180 |
|
|
10000 |
7-1/16” |
15000 |
700 |
160 |
180 |
|
|
10000 |
9” |
10000 |
830 |
209 |
220 |
|
|
10000 |
11” |
10000 |
680 |
160 |
280 |
|
|
10000 |
11” |
15000 |
700 |
160 |
280 |
|
|
13-5/8” |
2000 |
7-1/16” |
3000 |
590 |
160 |
180 |
|
2000 |
9” |
3000 |
590 |
209 |
220 |
|
|
2000 |
11” |
3000 |
590 |
230 |
280 |
|
|
2000 |
11” |
5000 |
600 |
230 |
280 |
|
|
2000 |
13-5/8” |
3000 |
580 |
230 |
350 |
|
|
3000 |
7-1/16” |
3000 |
660 |
160 |
180 |
|
|
3000 |
7-1/16” |
5000 |
660 |
160 |
180 |
|
|
3000 |
9” |
3000 |
660 |
209 |
220 |
|
|
3000 |
9” |
5000 |
680 |
209 |
220 |
|
|
3000 |
11” |
3000 |
660 |
230 |
280 |
|
|
3000 |
11” |
5000 |
660 |
230 |
280 |
|
|
3000 |
13-5/8” |
5000 |
600 |
230 |
350 |
|
|
5000 |
7-1/16” |
5000 |
640 |
160 |
180 |
|
|
5000 |
7-1/16” |
10000 |
650 |
160 |
180 |
|
|
5000 |
11” |
5000 |
660 |
230 |
280 |
|
|
5000 |
11” |
10000 |
680 |
230 |
280 |
|
|
5000 |
13-5/8” |
5000 |
680 |
259 |
350 |
|
|
5000 |
13-5/8” |
10000 |
700 |
230 |
350 |
|
|
10000 |
11” |
15000 |
800 |
230 |
280 |
|
|
10000 |
13-5/8” |
15000 |
820 |
230 |
350 |
|
